SR20 Container Tilting Platform

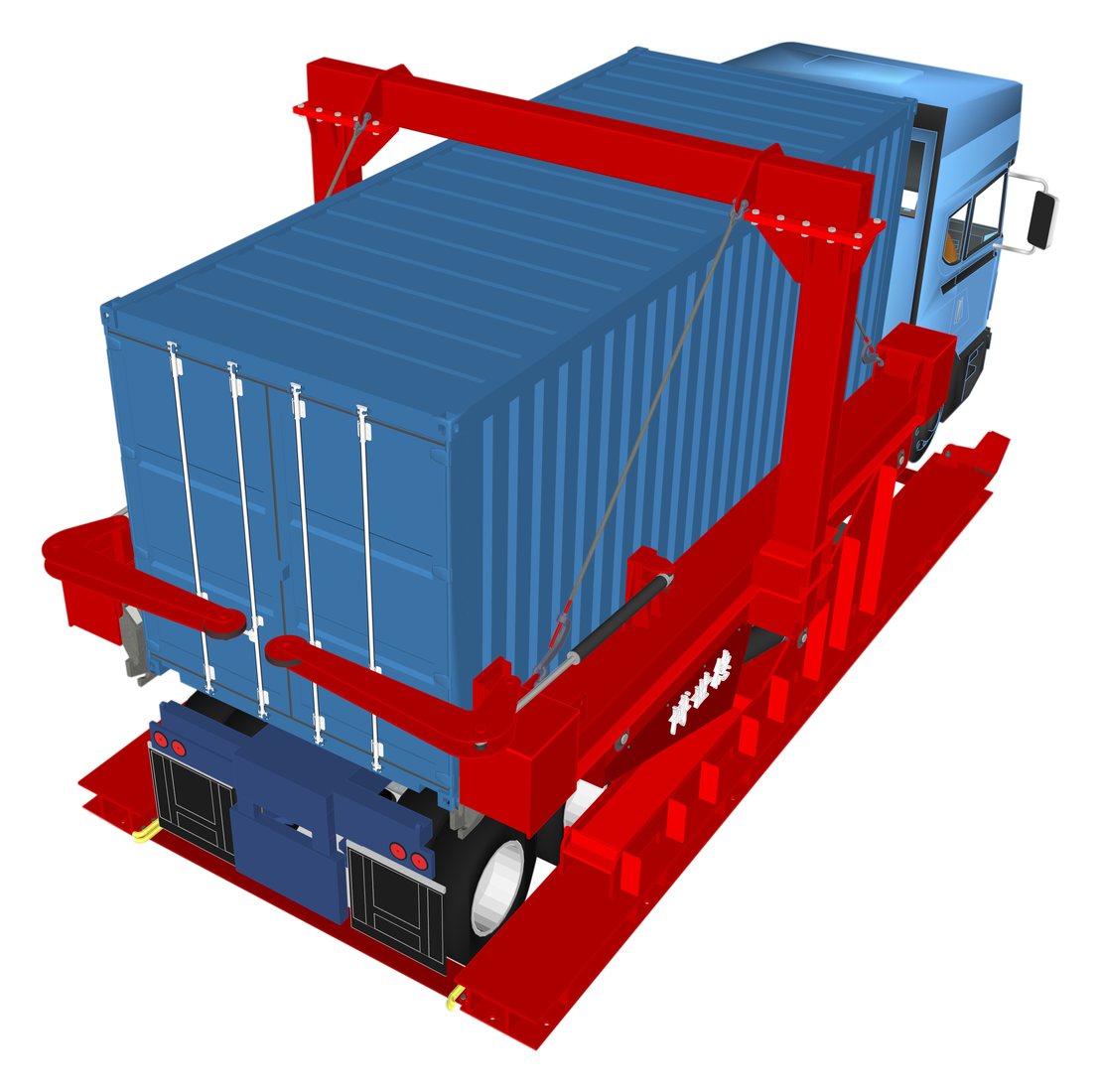

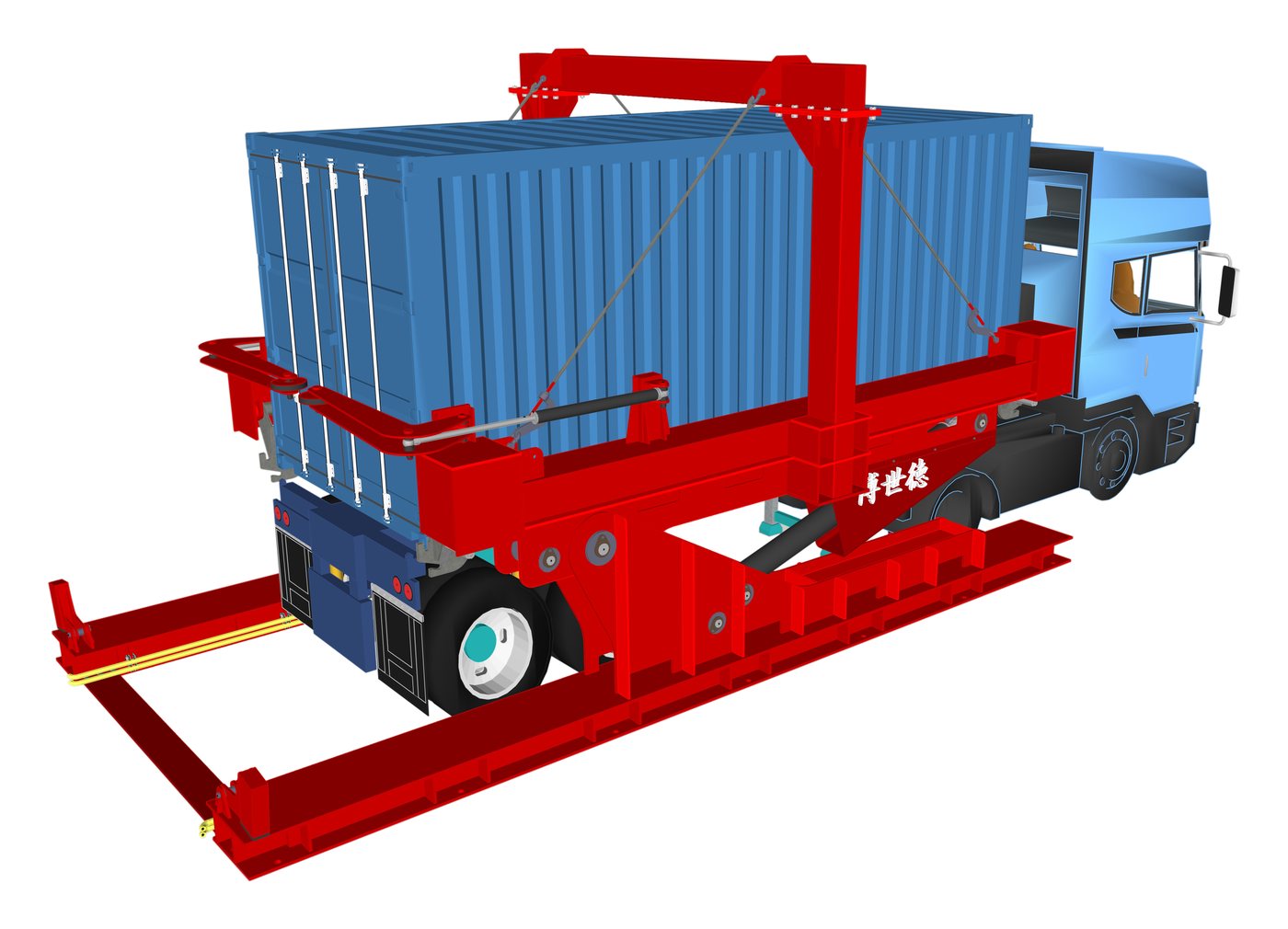

Installation visualization
Loading & Unloading Systems · Container Tilter
90° tilt for gravity loading; loads over 100 t/h, unloads over 30 t/h.
Design data
- Container tilt angle
- 90°
- Loading capacity
- > 100 t/h
- Unloading capacity
- > 30 t/h (with CDU PG01–PG06)
- Loading efficiency gain
- up to 90%
- Unloading efficiency gain
- up to 75%
- Labour cost reduction
- up to 80%
The SR20 tilts the whole container. For loading it tilts 90° so the material fills by gravity, reaching a fill rate of up to 100%; for unloading it works with the CDU PG01–PG06 discharge units. The platform can weigh the container contents.
Features
- Loading efficiency up to 90% higher, unloading efficiency up to 75% higher
- Labour costs up to 80% lower
- Loading over 100 t/h, unloading over 30 t/h
- Weighs the container contents
Applications
- Bulk container loading – fill rate up to 100%
- Unloading with CDU PG01–PG06 discharge units
Loading sequence
01
Tilt the container
02
Connect the loading spout to the liner inlet
03
Inflate the liner
04
Fill while venting
05
Stop at the set weight
06
Lower the container back onto the truck
